FOGGING MACHINES
Thermal Fogging Machines
Thermal fogging works by vaporizing water or oil based chemical solutions at the end of the resonator, the fogging barrel, which condenses on contact with cool ambient air to form a dense visible fog-cloud of ultra-fine aerosols that will penetrate even hard-to-reach areas.
What are your Options?
Vectorfog® thermal fogging machines are ideal for applying pesticides, disinfectants, biocides, fungicides and odor neutralizers. Engineered to withstand the harshest environments and long-term daily commercial use, they are extremely durable and will last for years when properly maintained. For applications where more corrosive chemicals are required, a stainless steel option is available.
They are also extremely versatile thanks to their unique and patented Dual-Point™ inlet technology; simply turn a valve to switch between water and oil based fogging. There is no need for additional equipment or modifications.
Little Red Hen Eggs
Photo by Al Stannard
Whitehorse, Yukon

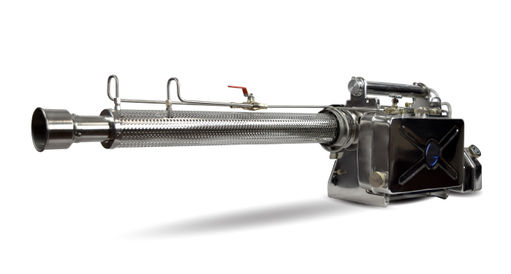

Vectorfog’s flagship portable thermal fogger, the H200SF is one of the
most versatile portable foggers on the market. It can withstand highly corrosive chemicals thanks to the high-grade stainless steel used to manufacture it. The ease of use, portability and durability of this fogger makes it ideal for applying pesticides, disinfectants, herbicides, fungicides and odor neutralizers in medium-sized locations.
Specifications
-
6.5 Liters (1.7 Gal) Tank Capacity
-
1.2 Liters (0.3 Gal) Fuel Capacity
-
1.2 LPH Fuel Consumption
-
50 LPH Oil (40 LPH Water) Flow Rate
-
5 – 30 microns Droplet Size
-
Petrol Fuel
-
10.8 kg (23.8 lbs) Net Weight
-
133 x 28 x 38 cm (52 x 11 x 11 in) Dimensions
H200SF-SS
The slightly smaller version of Vectorfog’s flagship portable thermal fogger, the H100SF is a midsize fogger with a plastic tank. With a maximum flow rate of 40 LPH and a spray distance of up to 20 meters (66 feet) this lightweight, durable and versatile fogger is ideal for applying pesticides, disinfectants, herbicides, fungicides and odor neutralizers in small to medium-sized locations.
Specifications
-
4.5 Liters (1.2 Gal) Tank Capacity
-
1.2 Liters (0.3 Gal) Fuel Capacity
-
1.2 LPH Fuel Consumption
-
40 LPH Oil (30 LPH Water) Flow Rate
-
5 – 30 microns Droplet Size
-
Petrol Fuel
-
8.5 kg (18.7 lbs) Net Weight
-
115 x 34 x 25 cm (45 x 13 x 10 in) Dimensions
H100SF
The slightly smaller version of Vectorfog’s flagship portable thermal fogger, the H100SF is a midsize fogger with a plastic tank. With a maximum flow rate of 40 LPH and a spray distance of up to 20 meters (66 feet) this lightweight, durable and versatile fogger is ideal for applying pesticides, disinfectants, herbicides, fungicides and odor neutralizers in small to medium-sized locations.
Specifications
-
4.5 Liters (1.2 Gal) Tank Capacity
-
1.2 Liters (0.3 Gal) Fuel Capacity
-
1.2 LPH Fuel Consumption
-
40 LPH Oil (30 LPH Water) Flow Rate
-
5 – 30 microns Droplet Size
-
Petrol Fuel
-
8.5 kg (18.7 lbs) Net Weight
-
115 x 34 x 25 cm (45 x 13 x 10 in) Dimensions
H300SF
Perfect in locations where access to vehicles is limited, the H400SF Trolly Mounted Thermal Fogger can be used for long periods at a time, without the need to refill, thanks to its large 30-liter
(8 gallons) high-grade stainless steel solution tank. This makes it ideal for applying pesticides, disinfectants, herbicides, fungicides and odor neutralizers in medium to large-sized locations.
Specifications
-
30 Liters (8 Gal) Tank Capacity
-
3.2 Liters (0.8 Gal) Fuel Capacity
-
4.3 LPH Fuel Consumption
-
80 LPH Oil (50 LPH Water) Flow Rate
-
5 – 30 microns Droplet Size
-
Petrol Fuel
-
38 kg (84 lbs) Net Weight
-
165 x 110 x 58 cm (65 x 43 x 23 in) Dimensions
H400SF
Engineered with you in mind. Spray up to 40 meters (131 feet) with the remote-controlled dual resonators on the H500SF Truck Mounted Thermal Fogger. Save valuable time and maximize your yield. The large 150-liter high-grade stainless-steel tank and a flow rate of up to 300 LPH make it ideal for applying pesticides, disinfectants, herbicides, fungicides and odor neutralizers in large-sized locations.
Specifications
-
150 Liters (40 Gal) Tank Capacity
-
15 Liters (4 Gal) Fuel Capacity
-
4.3 LPH Fuel Consumption
-
200 – 300 LPH Oil (110 LPH Water) Flow Rate
-
5 – 30 microns Droplet Size
-
Petrol Fuel
-
120 kg (265 lbs) Net Weight
-
162 x 72 x 80 cm (64 x 28 x 31 in) Dimensions
H500SF
The BY100 Mini Portable Thermal Fogger is lightweight, intuitively easy to use and powerful. Powered by an 8 oz Butane/Propane canister rather than a motor makes this one of the quietest and most durable foggers on the market. Less moving parts means less to breakdown, making it ideal for applying pesticides, disinfectants, herbicides, fungicides
and odor neutralizers in small locations without access to electricity.
Specifications
-
2.8 Liters (0.7 Gal) Tank Capacity
-
8 oz Canister Fuel Capacity
-
N/A Fuel Consumption
-
2 LPH Oil (N/A Water) Flow Rate
-
5 – 30 microns Droplet Size
-
Propane / Butane Fuel
-
1.7 kg (3.7 lbs) Net Weight
-
61 x 18 x 40 cm (24 x 7 x 16 in) Dimensions
BY100
Comparison Table
